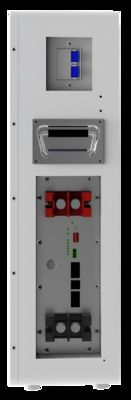

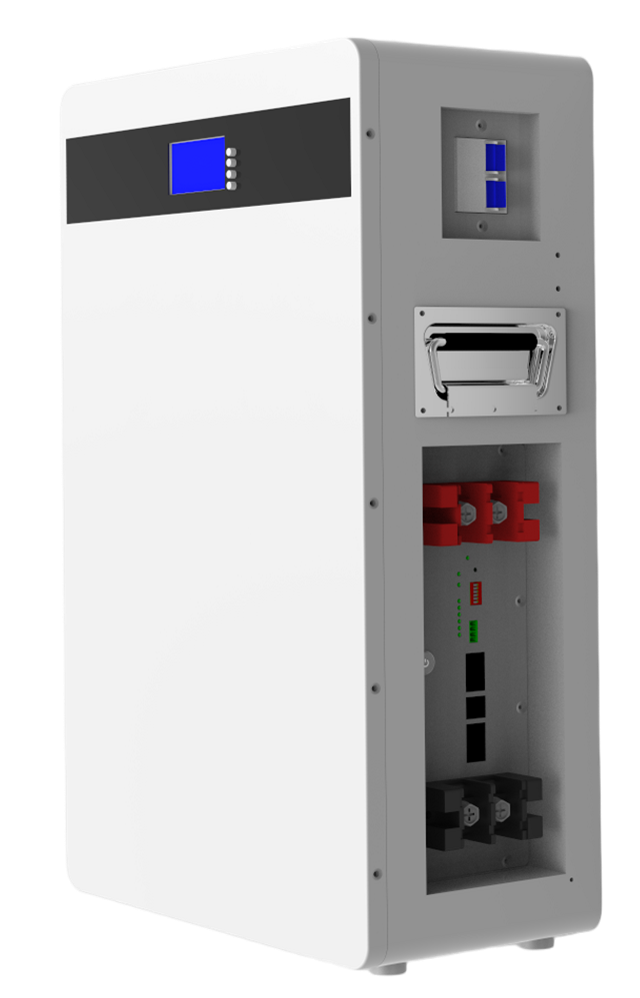

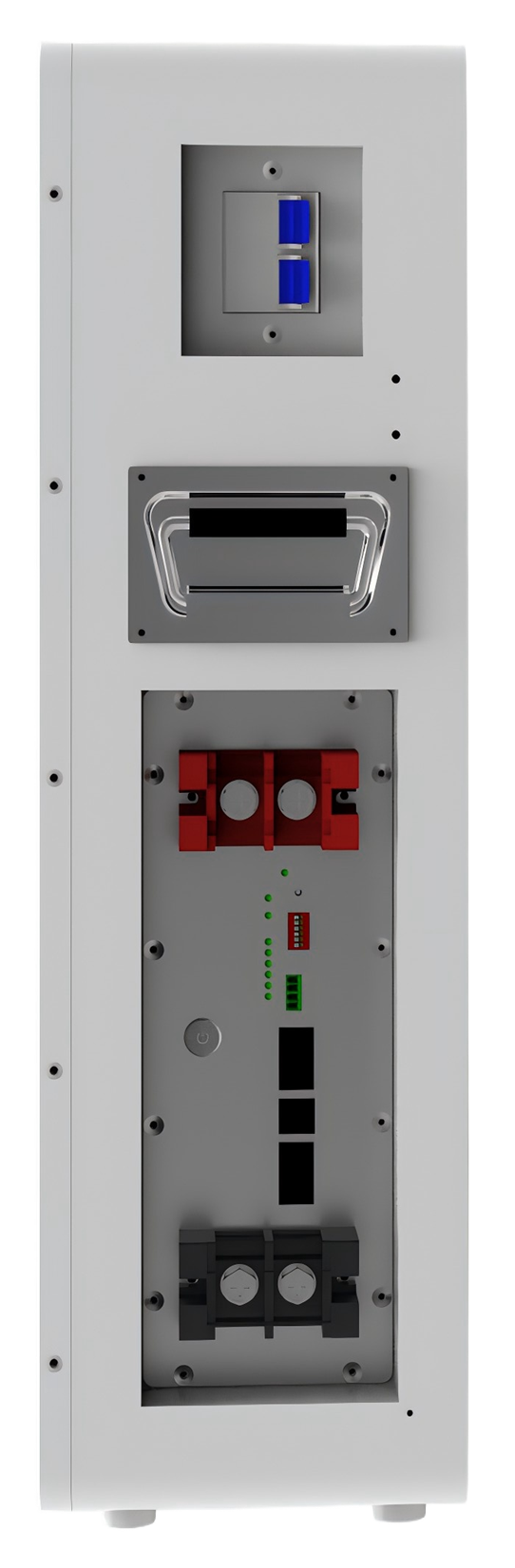

Home Energy Storage System LW-10K Wall-Mounted LiFePO₄ Battery
無料のサンプルとクーポンを私に連絡してください.
Whatsapp:0086 18588475571
ウェチャット: 0086 18588475571
スカイプ: sales10@aixton.com
24時間オンラインでサポートします
x商品の詳細
| サービスライフ | 10年 | 電池色 | 白 |
|---|---|---|---|
| 侵入保護 | IP65 | ストレージ湿度 | 65±20% RH |
| 維持のタイプ | 無料 | 動作温度範囲 | -20°C〜60°C |
| バッテリーセルタイプ | lifepo4 | 保証 | 5年 |
| ハイライト | wall-mounted LiFePO4 battery,home energy storage system,10KWh LiFePO4 battery pack |
||
製品の説明
Home Energy Storage System — LW-10K Wall-Mounted LiFePO₄ Battery
Product Overview
The LW-10K is a high-performance wall-mounted lithium iron phosphate (LiFePO₄) battery designed for residential energy storage applications.
With a usable capacity of 10.24 kWh, it provides reliable and efficient power for home solar storage systems, peak shaving, and backup power.
Featuring advanced safety protection, long cycle life, and intelligent communication, the LW-10K delivers clean, stable, and smart energy for modern households.
Technical Specifications
| Item | Specification |
|---|---|
| Battery Type | LiFePO₄ |
| Rated Voltage & Capacity | 51.2 V / 200 Ah |
| Rated Energy | 10.24 kWh |
| Operating Voltage Range | 40 V – 58.4 V |
| Charging Voltage | 58.4 V |
| Max Continuous Charge/Discharge Current | 200 A |
| Peak Discharge Current | 250 A (1 s, configurable) |
| Cycle Life | > 4500 cycles @ 80 % DOD |
| Communication Interface | RS485 / CAN (standard) |
| Operating Temperature | -20 °C ~ +60 °C |
| Humidity | 0 – 95 % (no condensation) |
| Noise Level | < 40 dB (@ 1 m) |
| Dimensions (W×H×D) | 1000 × 800 × 200 mm |
| Net Weight | 88.2 kg |
| Certifications | UN38.3, MSDS, CE |
| Warranty | 5 Years |
Key Features
-
High Safety – Uses LiFePO₄ chemistry with excellent thermal stability, non-explosive and fire-resistant.
-
Long Service Life – Over 4500 cycles, supporting 10+ years of daily use.
-
High Power Output – Continuous 200 A discharge and 250 A peak for high-load applications.
-
Intelligent BMS – Real-time monitoring and full protection (overcharge, over-discharge, over-current, short-circuit, over-temperature).
-
Flexible Communication – Supports RS485 and CAN for seamless inverter integration.
-
Modular & Scalable – Easily expandable for higher energy capacity.
-
Compact Wall-Mount Design – Space-saving, modern appearance, ideal for residential and small commercial use.
-
Ultra-Quiet Operation – Noise < 40 dB, suitable for indoor installation.
Typical Applications
-
Residential Solar Energy Storage – Store daytime solar power for night-time use, maximizing self-consumption.
-
Backup Power System – Reliable power supply during grid outages.
-
Smart Home Energy Management – Improve energy independence and reliability.
-
Small Commercial or Office Storage – Peak-load shifting and electricity cost reduction.
Our Services
-
Turn-key Energy Storage Solutions – From system design and component selection to on-site installation and commissioning.
-
Professional Technical Support – Communication protocol customization, inverter compatibility testing, and remote monitoring setup.
-
After-Sales Service – 5-year warranty and lifetime technical support.
-
OEM / ODM Customization – Flexible options for capacity, design, communication interface, and branding.
-
Fast Delivery & Global Logistics – Standardized products in stock and worldwide shipping available.
The LW-10K wall-mounted LiFePO₄ battery combines safety, durability, high efficiency, and intelligent control to provide a reliable energy storage solution for homes and small businesses.
Whether for solar integration, backup power, or off-grid applications, LW-10K ensures continuous, eco-friendly, and cost-effective energy independence.
